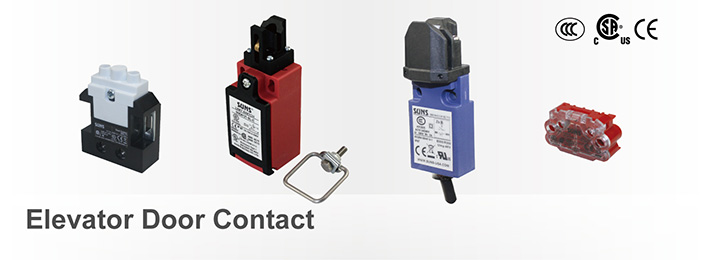

    Elevator Door Contact
    Features:
    1)For use in controlling the closure position of lift doors
    or as switch for locking mechanism of automatic doors
    Safety switch with positive contact
    2)Quiet Functioning
    3)Self-cleaning double break contact for long service life

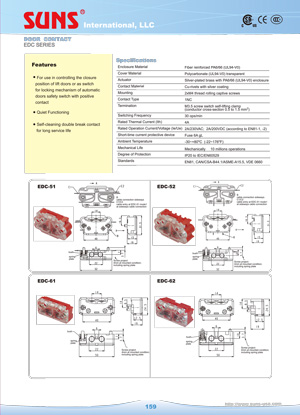

    Installation dimensions:
    Specifications:
    Enclosure Material: Fiber reinforced PA6/66 (UL94-V0)
    Cover Material: Polycarbonate (UL94-V0) transparent
    Actuator: Silver-plated brass with PA6/66 (UL94-V0) enclosure
    Contact Material: Cu-rivets with silver coating
    Mounting: 2xM4 thread rolling captive screws
    Contact Type: 1NC
    Termination:M3.5 screw switch self-lifting clamp (conductor cross-section 0.5 to 1.5 mm2)
    Switching Frequency: 30 ops/min
    Rated Thermal Current (Ith):4A
    Rated Operation Current/Voltage (Ie/Ue):2A/230VAC; 2A/200VDC (according to EN81-1, -2)
    Short-time current protective device: Fuse 6A gL
    Ambient Temperaturel: -30~+80oC (-22~176oF)
    Mechanical Life:Mechanically 10 millions operations
    Degree of Protection:IP20 to IEC/EN60529
    Standards EN81, CAN/CSA-B44.1/ASME-A15.5, VDE 0660
