• Overview

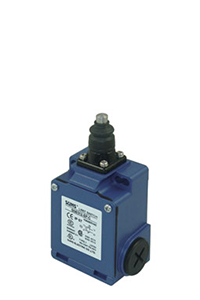

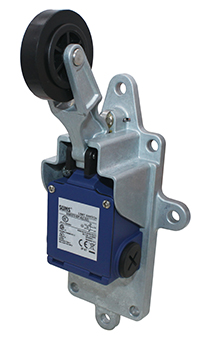

    SN63 Safety Limit Switches
    *Zinc die cast body
    *Earth grounding surface on same level as switching
    *Easily interchangeable contact block
    *Galvanically separated contacts
    *Screw terminals with self-lifting clamps for easy wiring
    *Positive Opening of NC contacts
    *4 x 90o actuator positions
    *Cable entry available: M20, PG13.5 and 1/2"NPT
    *Conform to EN 50041 standard
    Installation dimensions:
    Operating Speed: 0.05mm-2m/sec
    Operating Frequency: Mechanical:120ops/min Electrical: 30ops/min
    Insulation Resistance: >100MΩ @ 500V DC
    Contact Resistance:  <25mΩ
    Rated Current/Voltage: 10A/600V AC (EN60947-5-1)
    Electrical Rating:  UL/cUL Listed(E216958) for AC15 A600/ DC13 Q300
    Dielectric Strength: 1000VAC for 1 min between non-continuous terminals
            2500VAC for 1 min between each terminal and ground
    Service Life:    Mechanically 10,000,000, Electrically 500,000
    Operating Temperature: -25~80℃(-13~176°F) with no icing
    Humidity:     <95%RH
    Weight:    450~530g
    Degree of protection:  IP67
