• Overview

    FS-81-W Series Medical Foot Switches(IPx8)
    Features:
    •Aluminum alloy die cast base
    •Galvanically separated contacts (for -SP, -SL)
    •Positive opening of NC contacts (for -SP, -SL)
    •UL/CSA/CE/CCC certified
    •IEC60601 certification issued by TUV for medical applications
    •Custom color/wiring available

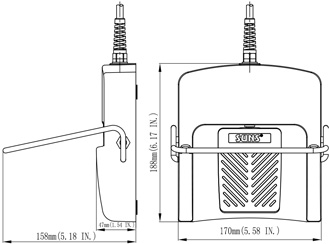

    Installation dimensions:
    Specifications:
    Operating Frequency 60 ops/min
    Insulation Resistance >100mΩ@500V DC
    Contact Resistance <25mΩ(initial)
    Rated Current/Voltage Ith: 10A Ui: 300V AC UL Rating: A300/AC15 CCC Rating: 10A/250V IEC60601 (TUV): 5A/25VAC
    Inrush Current Complies with IEC947-5-1: AC15/DC13
    Dielectric Strength 1000VAC for 1 min between current carrying parts
    2500VAC for 1 min between non-current carrying parts
    Service Life Mechanically 1 x106 (operations) Electrically 5 x105 (operations)
    Operating Temperature -30~+80oC (-22~176oF)
    Degree of Protection IPX8(NEMA 4, 4X, 6, 6P)

    TRADEMARK INFORMATION:
    All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

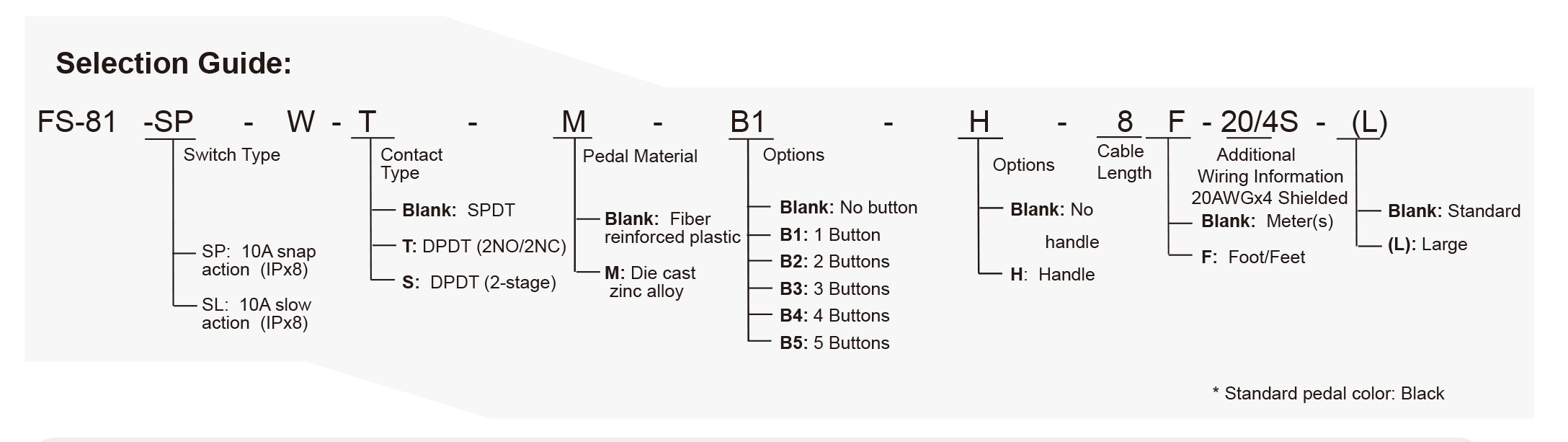

  • Selection Guide
