    FS-6 Foot Switches
    Features:
    * Robust aluminum alloy die cast body
    * Choice of different type of contact blocks
    * Water-proof to IP65(IP67 available on special request)
    * Galvanically separated contacts
    * Screw terminals with self-lifting clamps for easy wirting
    * Positive Opening of NC contacts
    * Safety reset option available
    * UL/CUL approval(E216958)
    * Threaded Hole available in:PG 13.5,m20x1.5 and 1/2NPT
    Installation dimensions:
    Specifications:
    Operating Frequency: 60 ops/min
    Insulation Resistance: >100mΩ@500VDC
    Contact Resistance: <25mΩ
    Rated Current/Voltage 10A/600V AC A600/AC15 Q300/DC13
    Inrush Current Complies with IEC947-5-1:AC15/DC 13
    Dielectric Strength: 1000VAC for 1 min between current carrying parts
    2500VAC for 1 min between non-current carrying parts
    Service Life: Mechanically 1.0×106(operations)
    Electrically 5×105 (operations)
    Operating Temperature:-30~+80℃(-22~176°F)
    Degree of Protection: IP65 (IP68 available on request)

    TRADEMARK INFORMATION:
    All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

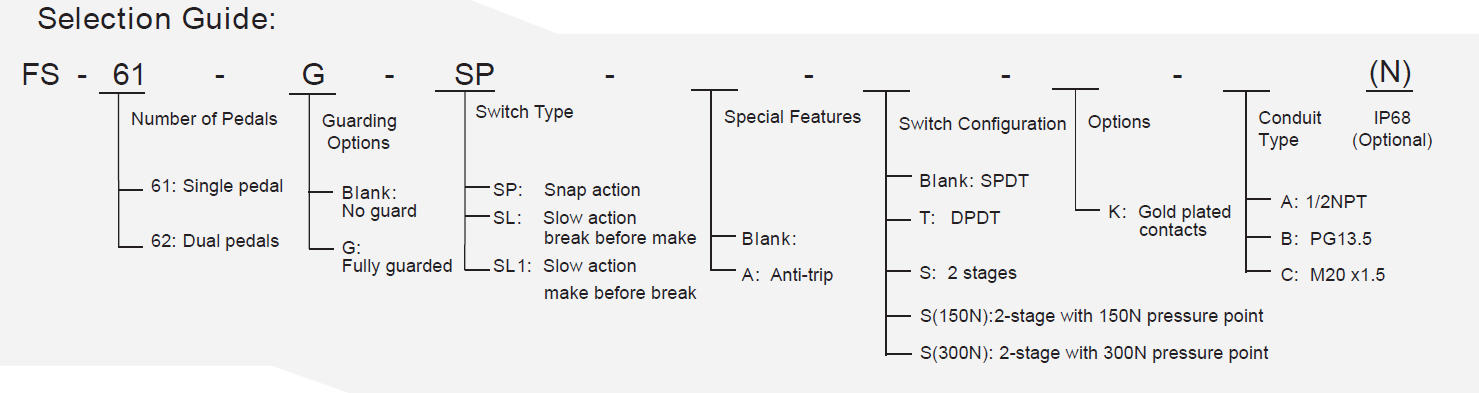

  • Selection Guide
