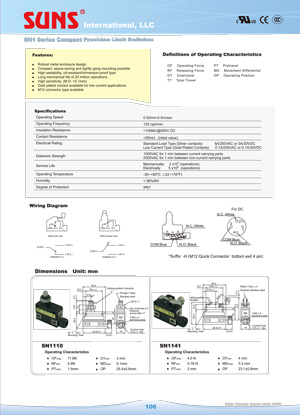

    SN1 Precision Limit Switches
    Features:
    * Robust metal enclosure design
    * Compact space-saving and tightly gang mounting possible
    * High sealability oil-resistant/Immersion-proof type
    * Long mechanical life of 10 million operations
    * High sensitivity (M.D. =0.1mm)
    * Gold plated contact available for low current applications
    * M12 connector type available
    Installation dimensions:
    Specifications:
    Operating Speed: 0.02mm-0.5m/sec
    Operating Frequency: 120ops/min
    Insulation Resistance: >100mΩ@500VDC
    Contact Resistance: <25mΩ
    Electrical Rating: Standard Load Type (Silver contacts5A/250VAC or 5A/30VDC
    Low Current type (Gold Plated Contacts) 0.1A/250VAC or 0.1A/30VDC
    Dielectric Strength: 1000VAC for 1 min between non-continuous terminals
    2500VAC for 1 min between each terminal and ground
    Service Life: Mechanically 1×107 (operations)
    Electrically 5×105 (operations)
    Operating Temperature: -30~+80 (-13~+176) without formation of ice
    Humidity: <98%RH
    Degree of Protection: IP67
