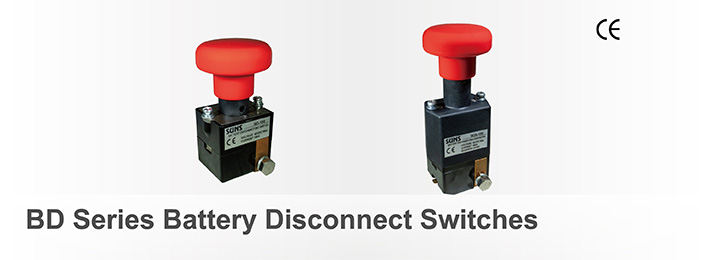

BD Series Battery Disconnect Switches

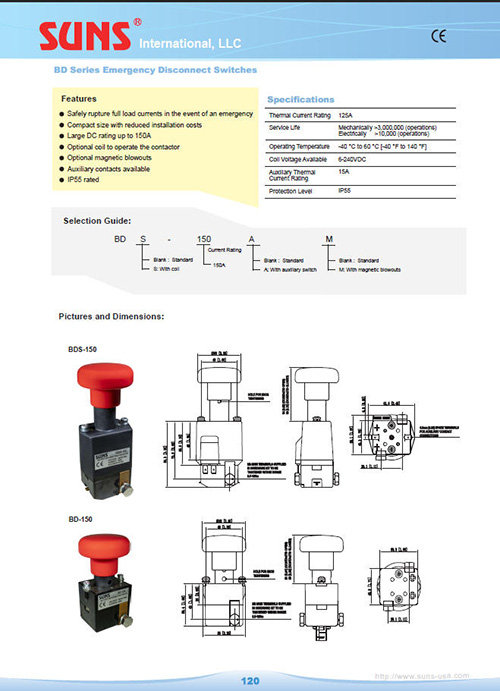

Features: * Safely rupture full load currents in the event of an emergency * Compact size with reduced installation costs * Large DC rating up to 150A * Optional coil to operate the contactor * Optional magnetic blowouts * Auxiliary contacts available * IP55 rated	Installation dimensions:
Specifications: Thermal Current Rating: 125A Service Life: Mechanically >3,000,000 (operations) Electrically >10,000 (operations) Operating Temperature: -40 °C to 60 °C [-40 °F to 140 °F] Coil Voltage Available: 6-240VDC Auxiliary Thermal Current Rating: 15A Protection Level: IP55

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:BD-150 View Details

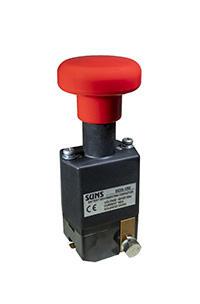

TYPE:BDS-150 View Details
