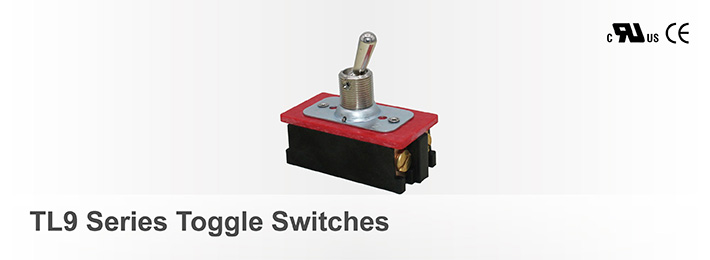

| TL9 Series Toggle Switches |
Features: *Heavy-Duty Positioning
*Versatile Specifications
*Ultimate Durability
*Ideal for High-Voltage DC |

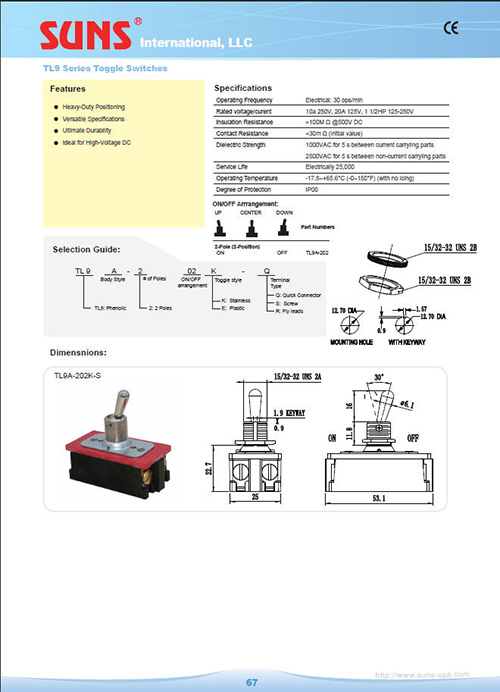

Installation dimensions:
 |
Specifications: Operating Frequency: Electrical: 30 ops/min
Rated voltage/curent:10a 250V, 20A 125V, 1 1/2HP 125-250V
Insulation Resistance: >100M Ω @500V DC
Contact Resistance: <30m Ω (initial value)
Dielectric Strength:1000VAC for 5 s between current carryiing parts
2500VAC for 5 s between non-current carryiing parts
Service Life: Electrically 25,000
Operating Temperature: -17.8~+65.6°C (-0~150°F) (with no icing)
Degree of Protection: IP00
|
