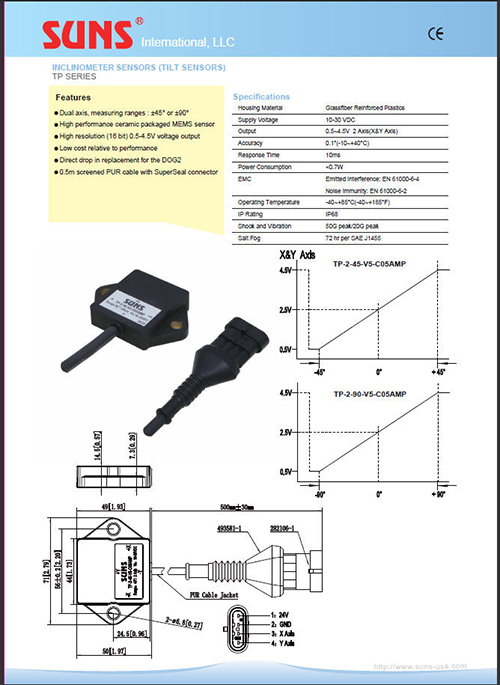

TP RP Series

Features: *Dual axis, measuring ranges : ±45° or ±90° *High performance ceramic packaged MEMS sensor *High resolution (16 bit) 0.5-4.5V voltage output *Low cost relative to performance *Direct drop in replacement for the DOG2 *0.5m screened PUR cable with SuperSeal connector

Installation dimensions:

Specifications: Housing Material: Glassfiber Reinforced Plastic Supply Voltage: 10-30 VDC Output: 0.5V - 4.5V 1 Axis(X Axis) Accuracy: SRY: 0.1° (-10 ~ +40°C) Response Time: 10ms Power Consumption: <0.7W EMC: Emitted Interference: EN 61000-6-4 Noise Immunity: EN 61000-6-2 Operating Temperature: -40 ~ +85°C (-40 ~ +185°F) IP Rating: IP68 Shock and Vibration: 50G peak/20G peak Salt Fog: 72 hr per SAE J1455

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.













TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:TP View Details

TYPE:RP View Details
