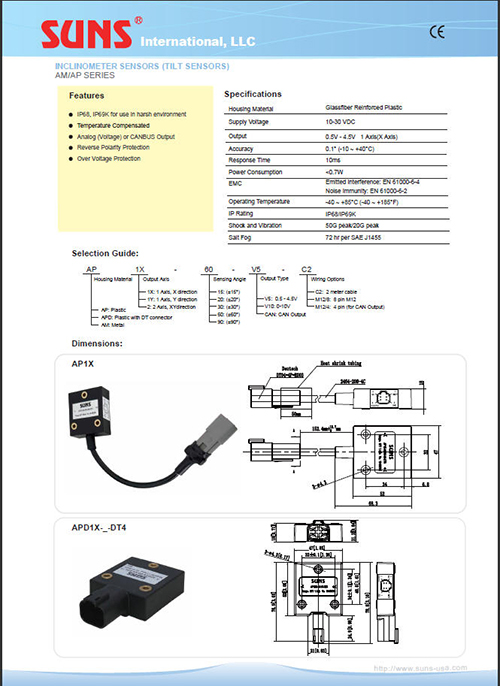

AP(M) BP CP DP Series

Features: *IP68, IP69K for use in harsh environment *Temperature Compensated *Analog (Voltage) or CANBUS Output *Reverse Polarity Protection *Over Voltage Protection

Installation dimensions:

Specifications: Housing Material: Glassfiber Reinforced Plastic Supply Voltage: 10-30 VDC Output: 0.5V - 4.5V 1 Axis(X Axis) Accuracy: SRY: 0.1° (-10 ~ +40°C) Response Time: 10ms Power Consumption: <0.7W EMC: Emitted Interference: EN 61000-6-4 Noise Immunity: EN 61000-6-2 Operating Temperature: -40 ~ +85°C (-40 ~ +185°F) IP Rating: IP68/IP69K Shock and Vibration: 50G peak/20G peak Salt Fog: 72 hr per SAE J1455

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.









TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:AP1X View Details	TYPE:AP1X_DT4 View Details	TYPE:AP2XD View Details
TYPE:BP View Details	TYPE:CP View Details	TYPE:DP View Details
