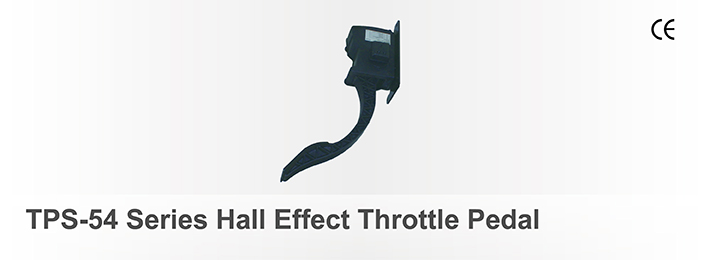

TPS-54 Series Hall Effect Throttle Pedal

Features: * Robust and compact designs for heavy-duty commercial and industrial applications * Hall effect,non-contact sensor for analog output * Various styles fitting different vehicles * Different treadle angles available * Electronically sealed to IP68S * Duplicate output available * Remarkable EMI/RFI immunity according to SAE J1113 * CAN output version available with suffix -CAN * PWM output version available with suffix -PWM

Installation dimensions:

Specifications: Supply Voltage: 5 VDC/10-30 VDC Current: 20 mA/25 mA max. (normal) 25 mA/47 mA max. (output to ground short) Output Voltage: 0.25-4.75 VDC or custom Output Delay: 4 ms typ. Output Load Resistance: 10 kOhm typ. Resolution: 12 bit Operating Temperature: -40~+125°C(-40~+257°F) Service Life: 10 million cycles (electrically and mechanically) RFI/EMI: Withstand per SAE J1113 Protection: Electronics IP68S sealed
