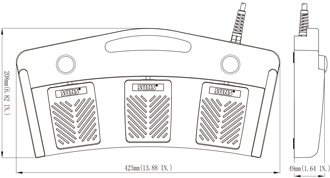

FS-83-W Series Medical Foot Switches(IPx8)

　Features：
　•Aluminum alloy die cast base
•Galvanically separated contacts (for -SP, -SL)
•Positive opening of NC contacts (for -SP, -SL)
•UL/CSA/CE/CCC certified
•Custom color/wiring available

 Specifications:
Operating Frequency 60 ops/min
Insulation Resistance >100mΩ@500V DC
Contact Resistance <25mΩ(initial)
Rated Current/Voltage Ith: 10A Ui: 300V AC or 10A/250VAC
Inrush Current Complies with IEC947-5-1: AC15/DC13
Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life 1,000,000 (operations)
Operating Temperature -30~+80oC (-22~176oF)
Degree of Protection IPX8(NEMA 4, 4X, 6, 6P)
