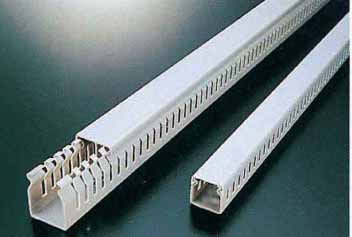

Wiring Ducts

  Characteristics:
  ¢ Material: High Impact, Self-Extinguishing, Warp-proof PVC
  ¢ Maximum Service Temperature 85ºC
  ¢ Available in open slot, closed slot and solid

　

Available Slot Styles

　

SD Series VD Series KD Series HD Series

Solid

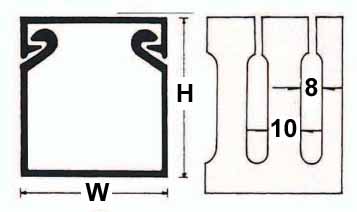

8mm (0.31") Slot

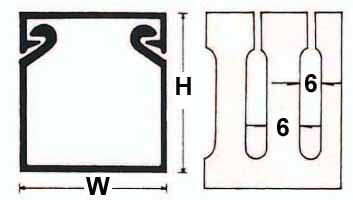

6mm (0.24") Slot

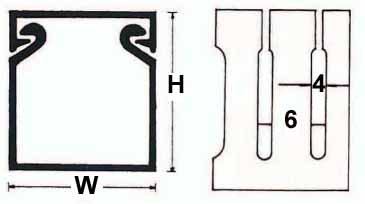

4mm (0.16") Slot

　

Fixing Slot

　

For Width under 65mm (2.5inch)

For Width above 65mm (2.5inch)

　

Available Width x Height (W x L)

(Please contact us if the dimension you require is not on the list)

Width (W)

Height (H)

20mm

(0.8")

25mm

(1.0")

30mm

(1.2")

33mm

(1.3")

40mm

(1.6")

45mm

(1.8")

50mm

(2.0")

60mm

(2.4")

65mm

(2.6")

75mm

(3.0")

80mm

(3.2")

100mm

(3.9")
15mm(0.6") 　 X 　 　 　 　 　 　 　 　 　 　
20mm(0.8") X 　 　 　 　 　 　 　 　 　 　 　
25mm(1.0") 　 X X 　 X X X X 　 X X 　
33mm(1.3") 　 　 　 X X 　 　 X 　 　 　 X
38mm(1.5") 　 X 　 　 　 　 X 　 　 　 　 　
40mm(1.6") 　 　 　 　 X 　 　 X 　 　 X X
45mm(1.8") 　 　 　 　 　 X 　 　 　 　 　 　
48mm(1.9") 　 　 　 　 　 　 　 X 　 　 　 X
50mm(2.0") 　 　 　 　 　 　 X 　 　 X 　 　
55mm(2.2") 　 　 　 　 　 　 　 　 　 　 　 X
60mm(2.4") 　 　 　 　 X 　 　 X 　 　 X 　
65mm(2.6") 　 　 　 　 　 　 　 　 X 　 　 　
70mm(2.7") 　 　 　 　 　 　 　 　 　 　 　 X
72mm(2.8") 　 　 　 　 　 　 　 　 X 　 　 　
75mm(3.0") 　 　 　 　 　 　 　 　 　 X 　 X
80mm(3.2") 　 　 　 　 X 　 　 X 　 　 X 　
100mm(3.9") 　 　 　 　 X 　 X X 　 X X X
120mm(4.7") 　 　 　 　 　 　 　 X X 　 X 　
150mm(5.9") 　 　 　 　 　 　 　 　 　 X 　 X
200mm(7.9") 　 　 　 　 　 　 　 　 　 　 　 X
