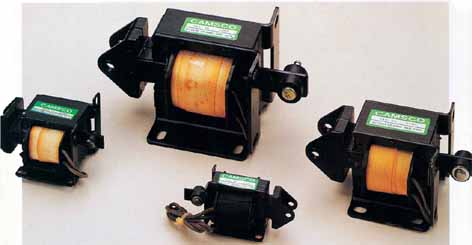

AC Solenoids
SPECIFICATIONS:
|
Model No |
Rated Stroke (mm) |
Rated Pull/Push (kg) |
Dimension L*W*H (mm) |
Plunger Weight (kg) |
Total Weight (kg) |
Rated Service |
Rated Voltage (VAC) |
Rated Frequency |
|
TAS-05 |
10 |
0.5 |
84x33x38 |
0.062 |
0.20 |
Continuous
|
110 or 220
|
50/60Hz
|
|
TAS-06 |
10 |
0.6 |
84x37x38 |
0.075 |
0.25 |
|
TAS-08 |
10 |
0.8 |
84x42x38 |
0.095 |
0.30 |
|
TAS-5 |
15 |
1 |
93x49x50 |
0.114 |
0.40 |
|
TAS-10 |
15 |
1.5 |
93x53x50 |
0.138 |
0.45 |
|
TAS-15 |
15 |
2 |
93x57x50 |
0.153 |
0.50 |
|
TASS-20 |
15 |
3.5 |
116x65x55 |
0.253 |
0.80 |
|
TAS-20 |
20 |
3 |
130x70x63 |
0.302 |
1.15 |
|
TAS-25 |
20 |
4 |
130x75x63 |
0.348 |
1.30 |
|
TAS-30 |
20 |
5 |
130x80x63 |
0.393 |
1.45 |
|
TAS-35 |
30 |
5 |
170x90x86 |
0.598 |
2.30 |
|
TAS-40 |
30 |
6 |
170x100x86 |
0.777 |
2.70 |
|
TAS-45 |
30 |
8 |
170x110x86 |
0.957 |
3.10 |
|
TAS-50 |
40 |
10 |
230x113x102 |
1.832 |
4.80 |
|
TAS-10A |
20 |
1.5 |
136x51x56 |
0.193 |
0.68 |
|
TAS-20A |
30 |
3 |
165x68x78 |
0.437 |
1.30 |
|
TAS-30A |
30 |
5 |
145x80x78 |
0.649 |
1.75 |
|
TAS-03 |
10 |
0.3 |
56x40x27 |
0.018 |
0.08 |
Intermittent |
|
