Ground Bus-Bar

　 Rated Insulation Voltage: 600V

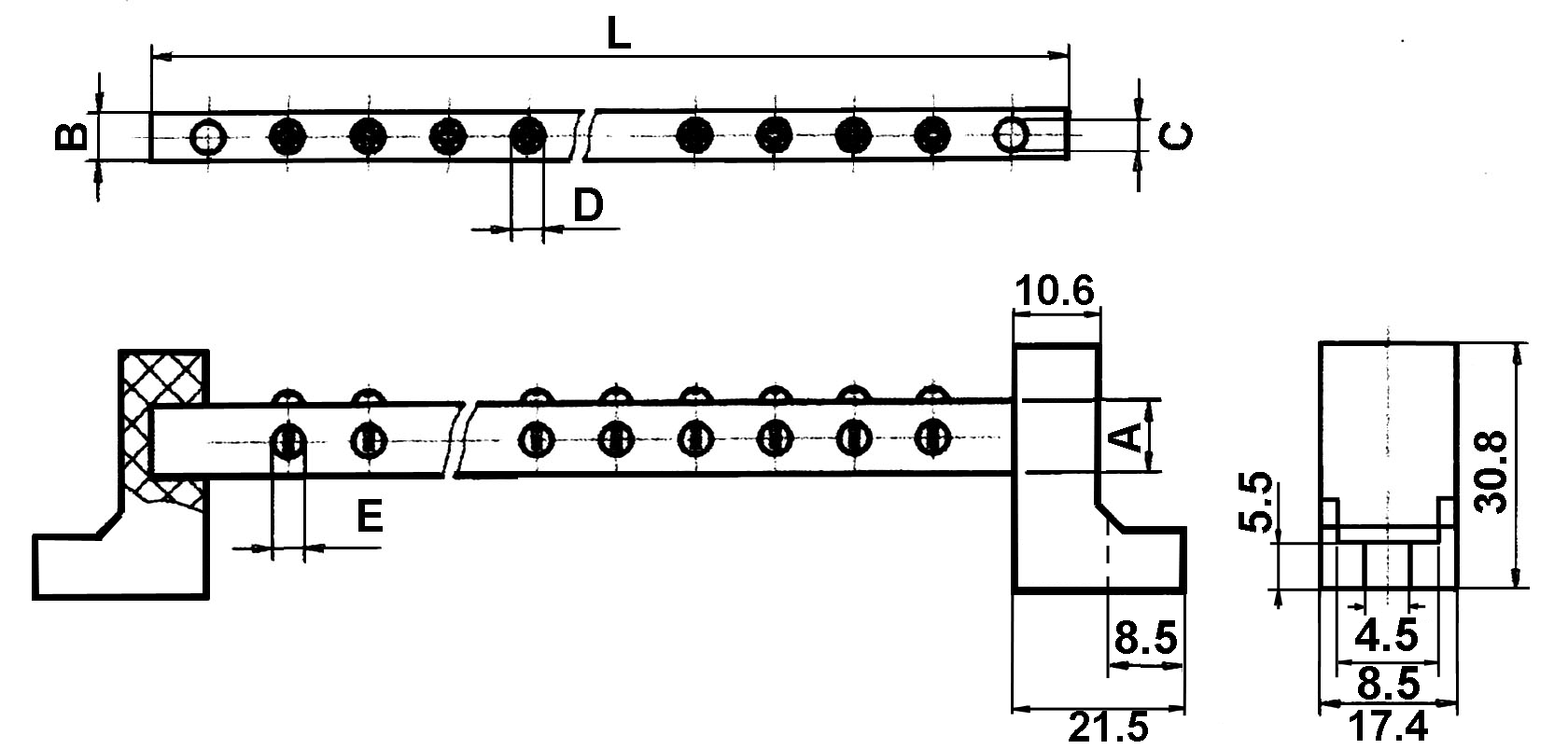

Type	Dimensions(mm)
Type	A	B	C	D	E	L	Wire Gauge
G-9604	9	6	4	M4	5.2	48.5	7AWG to 26AWG
G-9606	9	6	4	M4	5.2	63.5	7AWG to 26AWG
G-9608	9	6	4	M4	5.2	78.5	7AWG to 26AWG
G-9610	9	6	4	M4	5.2	93.5	7AWG to 26AWG
G-9612	9	6	4	M4	5.2	108.5	7AWG to 26AWG
G-12804	12	8	4	M5	6.5	55.5	4AWG to 14AWG
G-12806	12	8	4	M5	6.5	75.5	4AWG to 14AWG
G-12808	12	8	4	M5	6.5	95.5	4AWG to 14AWG
G-12810	12	8	4	M5	6.5	115.5	4AWG to 14AWG
G-12812	12	8	4	M5	6.5	135.5	4AWG to 14AWG

　

　
