Foot Switches
(Data Sheet
2.70M)
SPECIFICATIONS
|
Type |
Contact Configuration |
Rating |
IP Rating |
Enclosure Material |
|

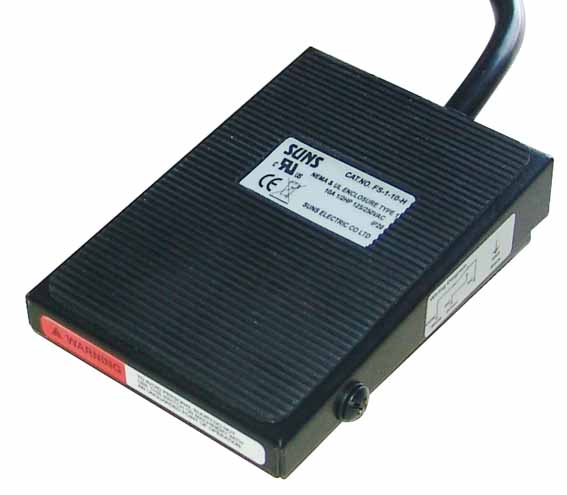

FS-1 |
1NO/1NC |
10A/250VAC
or 15A/250VAC |
IP20 |
Steel |
|
FS-2 |
1NO/1NC |
10A/250VAC
or 15A/250VAC |
IP20 |
Plastic |
|
FS-3 |
1NO/1NC |
15A/250VACor
20A/250VAC |
IP20 |
Aluminum |
|
FS-5 |
1NO/1NC or 2NO/2NC |
15A/250VACor
20A/250VAC |
IP65 |
|

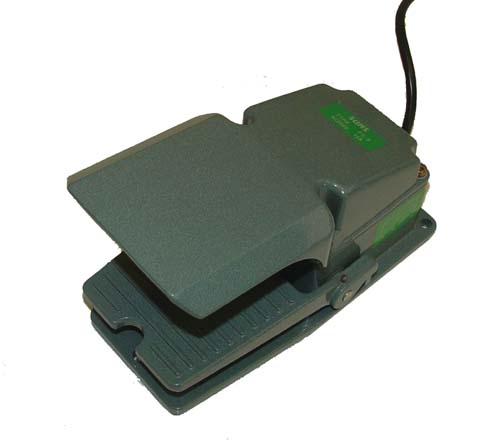

FS-5H |
|
FS-5G |
|
FS-61-SP |
1NO/1NC Snap Action
or 2NO/2NC Snap Action
or two stages operation |
10A/600V |
IP65 (or IP67 |
Aluminum |
|

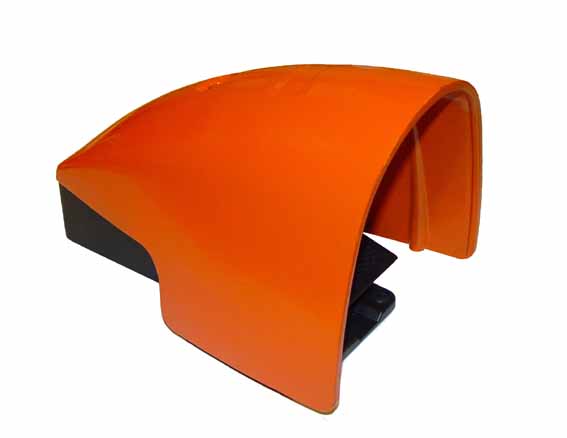

FS-61G-SP |
|
FS-62-SP
(dual pedal) |
1NO/1NC Snap Action
or 2NO/2NC Snap Action
or two stages operation |
10A/600V |
|
Aluminum |
|

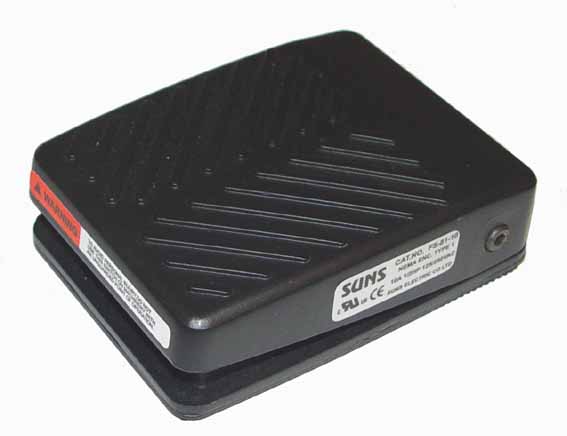

FS-81 |
1NO/1NC Snap Action
or 2NO/2NC Snap Action |
10A/250VAC |
IP20 or IP68 |
Plastic or Aluminum |
|
FS-82 (dual pedal) |
1NO/1NC Snap Action
or 2NO/2NC Snap Action |
10A/250VAC |
IP20 or IP68 |
Plastics |
* Heavy duty cord with serial
Connector available for all models
|
|
